Built to UK specifications

Powerful 5HP Motor

4 Knife Cutterhead

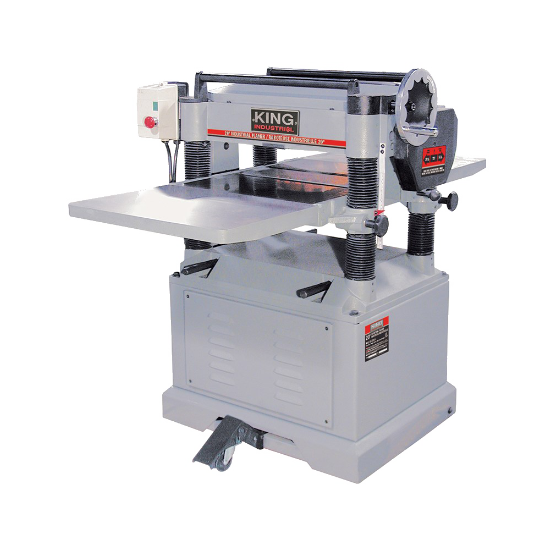

King Industrial 20”/508mm Planer / Thicknesser

Solid cast iron extension tables
Magnetic safety switch
Table raises and lowers on four precision ground columns for extra stability
Anti-kickback fingers in front of the infeed roller to prevent wood kickback
Stock return rollers on top of planer for multiple passes
4 Knives allows rapid cutting while producing a superior finish
Mobile base system built into the cabinet

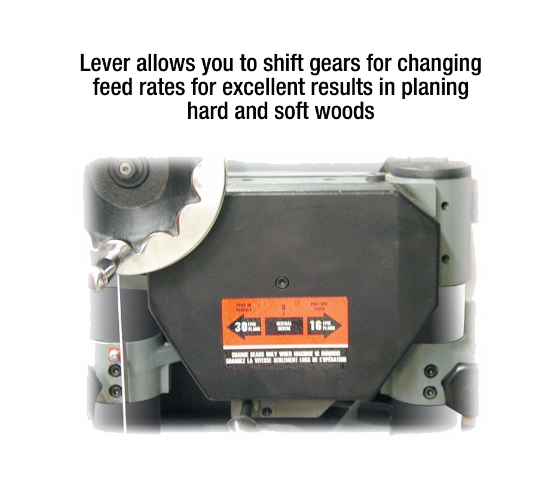

Lever allows you to shift gears for changing feed rates for excellent results in planing hard and soft wood

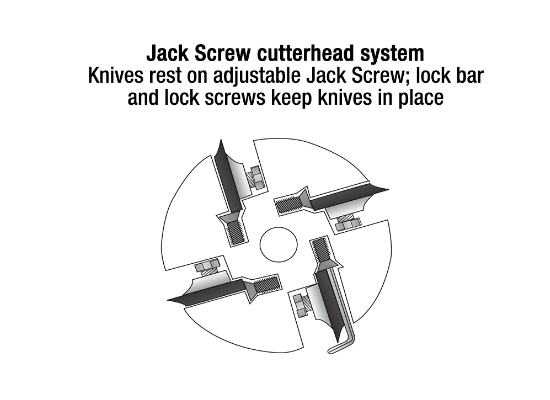

Knives rest on adjustable Jack Screws; lock bar and lock screws keep knives in place
Comes with knife settings gauge and 5” dust chute
Includes *2 Year Limited Warranty*
Free Delivery - Mainland UK (*excl Highlands & Islands / OTHER)

Maximum planing width	508mm
Maximum planing thickness	200mm
Maximum depth of cut	2.3mm
Total Surface of work table	1435mm x 508mm
Cutterhead speed	5000 rpm
Cutterhead diameter	80mm
Number of knives	4
Feed rates	(4.8-6.1) MPM / (16-20) FPM
Cuts per cm / inch	41-32 / 104-83
Motor	19 Amp
Voltage	230V. 1 phase. 50Hz
Assembled dimensions (LxWxH)/weight	1435 x 1016 x 1067mm / 377kgs
Package dimensions (LxWxH)/weight	972 x 737 x 1197mm / 390kgs
