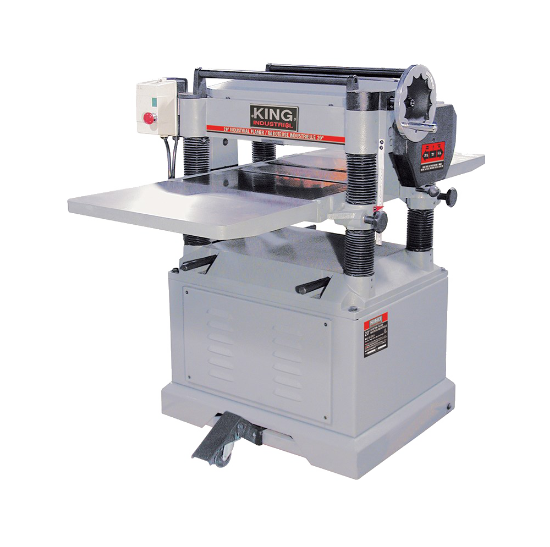

Built to UK specifications

Powerful 5HP Motor

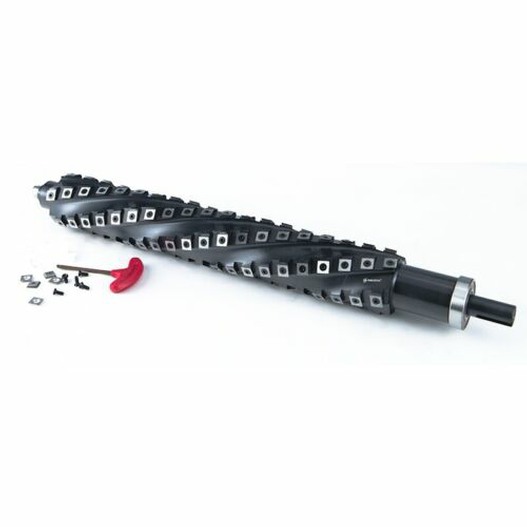

5 Row Spiral Cutterhead with 100 replaceable cutter inserts

Solid cast iron extension tables
Magnetic safety switch
Table raises and lowers on four precision ground columns for extra stability
A spiral cutterhead is 50% quieter than a conventional cutterhead
Anti-kickback fingers in front of the infeed roller to prevent wood kickback
Stock return rollers on top of planer for multiple passes
Extension tables provide support for longer material
Mobile base system built into the cabinet

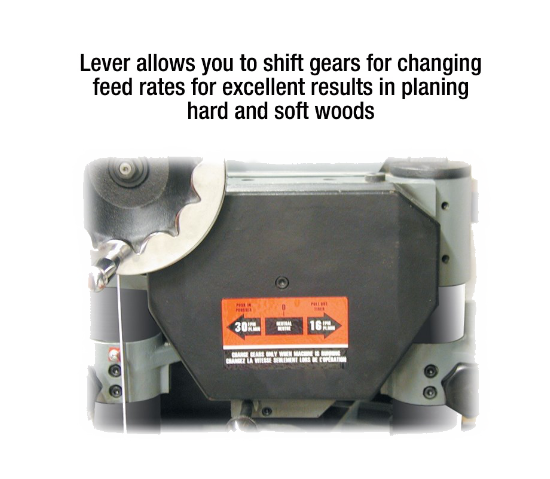

Lever allows you to shift gears for changing feed rates for excellent results in planing hard and soft wood
Comes with knife settings gauge and 4” dust collector outlet
Includes *2 Year Limited Warranty*
Free Delivery - Mainland UK (*excl Highlands & Islands / OTHER)

Maximum planing width	508mm
Maximum planing thickness	200mm
Maximum depth of cut	2.3mm
Total Surface of work table	1435mm x 508mm
Cutterhead speed	5000 rpm
Cutterhead diameter	80mm
Spiral Cutter Inserts	100
Feed rates	(4.8-6.1) MPM / (16-20) FPM
Motor	19 Amp
Voltage	230V. 1 phase. 50Hz
Assembled dimensions (LxWxH)/weight	1435 x 1016 x 1067mm / 377kgs
Package dimensions (LxWxH)/weight	972 x 737 x 1197mm / 390kgs
